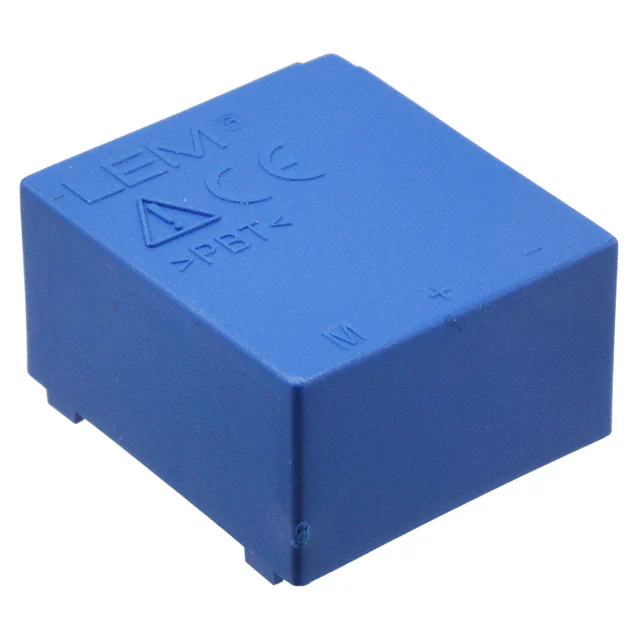

LA 25-NP

LA 25-NP

Part Number
LA 25-NP
Manufactures
LEM USA Inc.
Description
SENSOR CURRENT HALL SELECTABLE
Data sheet
LA 25-NP.pdf
Category
Current Transducers
Unit Price
Request a Quote
In Stock
5000
Lead Time
To be Confirmed
Quick Inquiry
- +   Add To Cart

Payment Methods
Delivery Services

LA 25-NP

Request a Quote

Part Number
Quantity
Contact
Email
Company
Country/Region*
Comments
  • Part Number # LA 25-NP (Current Transducers) is manufactured by LEM USA Inc. and distributed by Kimter Electronics. Being one of the leading electronics distributors, we carry many kinds of electronic components from some of the world’s top class manufacturers. Their quality is guaranteed by its stringent quality control to meet all required standards.For LA 25-NP specifications/configurations, quotation, lead time, payment terms of further enquiries please have no hesitation to contact us. To process your RFQ, please add LA 25-NP with quantity into BOM. Kimter Electronics does NOT require any registration to request a quote of LA 25-NP. Buy the LA 25-NP LEM USA Inc. on Kimter Electronics,we are LEM USA Inc. Corporation distributor, we sales new&original and offer 24 hours service,180 days warranty date, send the LA 25-NP within 24 hours,please contact our sales team or send email to info@kimter.com Hope we can cooperate in the future.

    LA 25-NP Specifications

    Part Status Active
    For Measuring AC/DC
    Sensor Type Hall Effect, Closed Loop
    Current - Sensing 5A, 6A, 8A, 12A, 25A (Selectable)
    Number of Channels 1
    Output Ratiometric, Current
    Sensitivity -
    Frequency DC ~ 150kHz
    Linearity ±0.2%
    Accuracy ±0.5%
    Voltage - Supply ±15V
    Response Time 1µs
    Current - Supply (Max) 10mA
    Operating Temperature -40°C ~ 85°C
    Polarization Bidirectional
    Mounting Type Through Hole
    Package / Case 10-DIP Module
    Shipment UPS/EMS/DHL/FedEx Express.
    Condtion New original factory.
