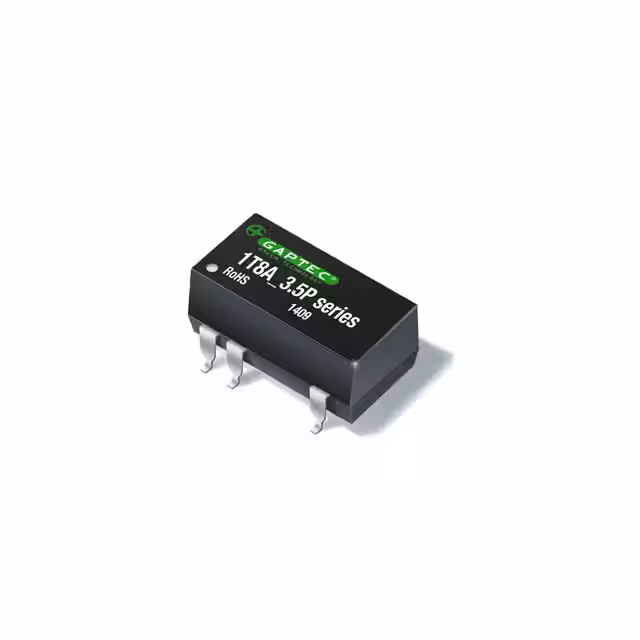

1T8A_0505S3.5UP

1T8A_0505S3.5UP

Part Number
1T8A_0505S3.5UP
Manufactures
GAPTEC Electronic
Description
DC-DC
Data sheet
1T8A_0505S3.5UP.pdf
Category
DC DC Converters
Unit Price
Request a Quote
In Stock
5000
Lead Time
To be Confirmed
Quick Inquiry
- +   Add To Cart

Payment Methods
Delivery Services

1T8A_0505S3.5UP

Request a Quote

Part Number
Quantity
Contact
Email
Company
Country/Region*
Comments
  • Part Number # 1T8A_0505S3.5UP (DC DC Converters) is manufactured by GAPTEC Electronic and distributed by Kimter Electronics. Being one of the leading electronics distributors, we carry many kinds of electronic components from some of the world’s top class manufacturers. Their quality is guaranteed by its stringent quality control to meet all required standards.For 1T8A_0505S3.5UP specifications/configurations, quotation, lead time, payment terms of further enquiries please have no hesitation to contact us. To process your RFQ, please add 1T8A_0505S3.5UP with quantity into BOM. Kimter Electronics does NOT require any registration to request a quote of 1T8A_0505S3.5UP. Buy the 1T8A_0505S3.5UP GAPTEC Electronic on Kimter Electronics,we are GAPTEC Electronic Corporation distributor, we sales new&original and offer 24 hours service,180 days warranty date, send the 1T8A_0505S3.5UP within 24 hours,please contact our sales team or send email to info@kimter.com Hope we can cooperate in the future.

    1T8A_0505S3.5UP Specifications

    Series1T8A_3.5P (1W)
    RoHSRoHS
    TypeIsolated Module
    Features-
    Efficiency85%
    Part StatusActive
    ApplicationsITE (Commercial)
    Mounting TypeSurface Mount
    Power (Watts)1 W
    Package / Case8-SMD Module, 5 Leads
    Approval AgencyCE
    Standard Number-
    Control Features-
    Size / Dimension0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm)
    Number of Outputs1
    Voltage - Output 15V
    Voltage - Output 2-
    Voltage - Output 3-
    Voltage - Output 4-
    Voltage - Isolation3.5 kV
    Operating Temperature-50°C ~ 125°C (With Derating)
    Voltage - Input (Max)5.5V
    Voltage - Input (Min)4.5V
    Current - Output (Max)200mA
    Supplier Device Package-
